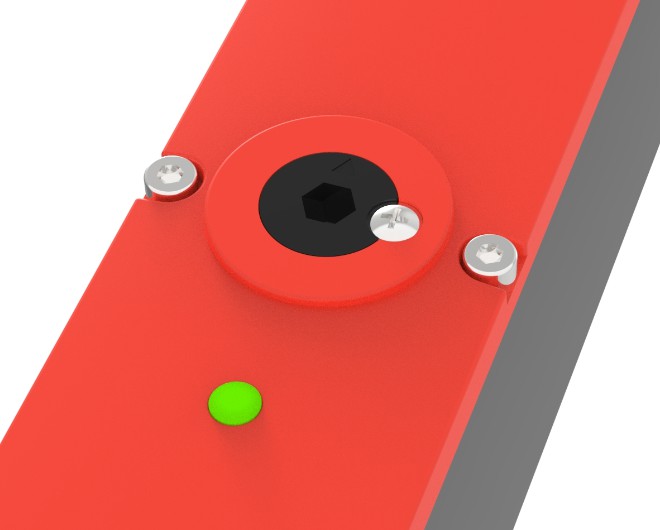

Oxon-T3PAM-20/11
Product advantage
Standard/Mechanical lock - Electromagnetic unlock/full metal head
Product characteristics
Integrated reverse protection, over current protection, over voltage protection and other protection measures.
All-metal head, stainless steel assembly, four-way rotation, multi-angle installation.
4 way forced mechanical contact, safe and reliable.
Integrated front and rear manual unlock device.
Highlight the indicator to understand the lock status in real time.
Seismic spring terminal, reliable connection, increase the installation speed by 33%.
- Parameters
Product advantage
Standard/Mechanical lock - Electromagnetic unlock/full metal head
Product characteristics
Integrated reverse protection, over current protection, over voltage protection and other protection measures.
All-metal head, stainless steel assembly, four-way rotation, multi-angle installation.
4 way forced mechanical contact, safe and reliable.
Integrated front and rear manual unlock device.
Highlight the indicator to understand the lock status in real time.
Seismic spring terminal, reliable connection, increase the installation speed by 33%.
Power | |
Power supply | 24V DC |
Tolerance | +10% /-25% |
Voltage tolerance | 2.9W |
Output | |
Safe output | Lock monitoring output: 2NC Insert key monitoring output:1NO/1NC |
Contact capacity | |
AC-15 | 1.5A/120VAC |
DC-13 | 0.22A/125VDC |
General parameters | |
Shell material | V0 Fire protection engineering plastics |
Operating unit | SUS304 stainless steel |
Dimensions | 190mm×40mm×47.5mm |
Safety standards | |
Compliance | EN 60947-5-1 IEC 61326-3-1 EN ISO 13849-1 ISO 14119 |
Ordering information | |
Oxon-T3PAM-20/11 | 01120401022 |
Used for monitoring various security doors and Windows.
Force security output:
- At least 2NC contacts for safety monitoring;
- A variety of additional auxiliary signal contact combinations are available.
Applicable industry:
- Automated production line
- Robot production line
- Hazardous test area
- Isolation site
